Dual Rail SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees Rotation

Brand Name : INFITEK

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : crate

Application : 90 degrees, 180 degrees, and 270 degrees rotation PCB Turning Over Conveyor

Description : SMT PCB Turning Conveyor

Brand : INFITEK

Features : This unit is used to redirect PCBs flow into different channels in a production line

Warranty : 1 Year Warranty

Reliability : for Industrial use

Packaging : Wooden crate/box

Contact Now

SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees Rotation

Dual Rail SMT PCB Turning Conveyor, 90 degrees, 180 degrees, and 270 degrees rotation, Modular Design SMT Link Conveyor

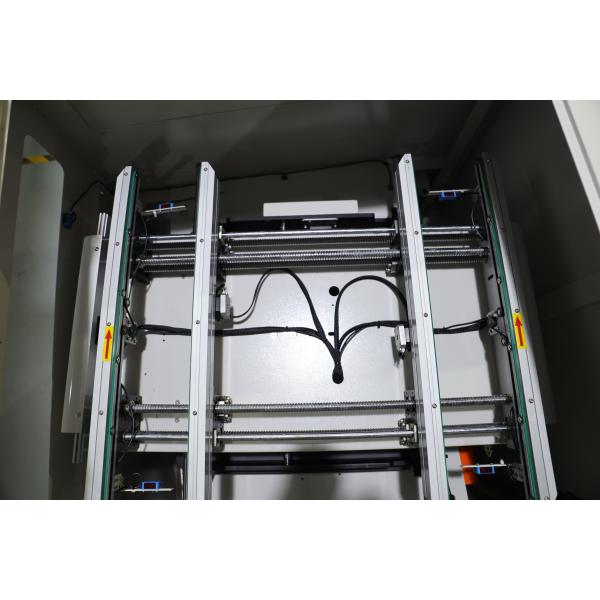

INFITEK Dual Rail Turning Over Conveyor is a link conveyor used in the SMT production line. The main function of this SMT PCB Turning Conveyor is to redirect PCB flow into different channels in a production line. INFITEK SMT PCB Turning Conveyor is capable to rotate 90 degrees, 180 degrees, and 270 degrees. INFITEK SMT PCB Turning Conveyor has a safety feature design. Using an enclosed design with a built-in torque limiter ensures the highest level of safety. PCB traffic flow can be customized and other sizes are available upon request.

Features:

  • User-friendly “soft-touch” LED control membrane control panel
  • Enclosed design with built-in torque limiter ensures the highest level of safety
  • The top cover can be opened for easy access to hardware during maintenance
  • Parallel and smooth width adjustment (lead screw)
  • Steady and precise scaling (retractable motor)
  • Minimize transmission clearance between conveyors
  • Different sizes available upon request
  • PCB traffic flow scan be customized
  • SMEMA compatible
TECHNICAL PARAMETERS
Description This unit is used to redirect PCBs flow into different channels in a production line (rotate 90 degrees, 180 degrees, 270 degrees)
Cycle time Approx.15 seconds
Belt type Round belt or oblate belt
Power supply AC1P110V/220V
Power Max 250VA
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left

SPECIFICATIONS
Model Dimension (L*W*H MM) PCB size (MM) Weight (KG)
CN-L-N 600*600*1200 50*50-445*400 170
CN-XL-N 750*750*1200 50*50-530*460 220

Dual Rail SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees RotationDual Rail SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees Rotation


Wholesale Dual Rail SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees Rotation from china suppliers

Dual Rail SMT PCB Turning Conveyor 90 Degrees 180 Degrees 270 Degrees Rotation Images
